Lifetime Excellence
PALFINGER CRANE
Established in 1932, PALFINGER stands for the most innovative, reliable and cost-effective lifting solutions for use on commercial vehicles and in the maritime field. As a multinational company group with its headquarters in Salzburg, Austria, PALFINGER has manufacturing and assembly sites in Europe, in North and South America as well as in Asia. Innovation and further internationalisation of products, processes and services form, in addition to greater flexibility, the strategic pillars of the corporate strategy. High flexibility and competence in production and a global sales and services network give us a crucial competitive edge and ensure our customers lifetime excellence.
 |
|---|
PALFINGER CRANE Standards
-
ISO 9001
-
TUV Test Certificate
-
DIN 15018 H1-B3
-
EN 12999
Benefits
-
Light Weight Crane (Finite Elements Technology).
-
Easy to use and Easy to maintain.
-
High Safety Standard with many safety devices (Optional).
-
Long-life surface and Excellent corrosion protection with KTL Painting.
-

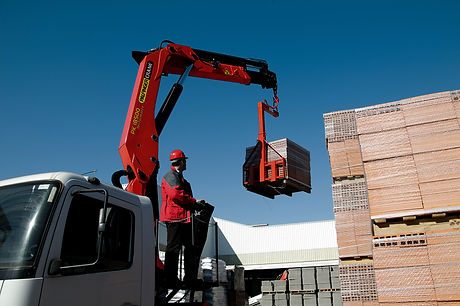

Multipurpose : Grabs, Pallet forks, Bastket, etc.
Max. Lifting Moment : 5.8 mt/56.9 kNm
Max. Lifting Capacity : 3300 kg/32.4 kN
Max. Hydraulic Outreach : 9.6 m
Slewing Angle : 400°
Max. Lifting Moment : 7.6 mt/75.0 kNm
Max. Lifting Capacity : 3300 kg/32.4 kN
Max. Hydraulic Outreach : 9.6 m
Slewing Angle : 400°
Max. Lifting Moment : 9.5 mt/93.5 kNm
Max. Lifting Capacity : 5700 kg/55.9 kN
Max. Hydraulic Outreach : 12.4 m
Slewing Angle : 400°
Max. Lifting Moment : 14.6 mt / 143.2 kNm
Max. Lifting Capacity : 6200 kg / 60.8 kN
Max. Hydraulic Outreach : 14.5 m
Slewing Angle : 420°
Max. Lifting Moment : 18.3 mt/180.0 kNm
Max. Lifting Capacity : 8000 kg/78.5 kN
Max. Hydraulic Outreach : 14.6 m
Slewing Angle : 400°
Max. Lifting Moment : 23.0 mt/226.0 kNm
Max. Lifting Capacity : 10000 kg/98.1 kN
Max. Hydraulic Outreach : 16.7 m
Slewing Angle : 400°
Max. Lifting Moment : 30.4 mt / 298.2 kNm
Max. Lifting Capacity : 8500 kg / 83,4 kN
Max. Hydraulic Outreach : 14.3 m
Slewing Angle : 400°
High Performance Model
Max. Lifting Moment : 22.4 mt /219.7 kNm
Max. Lifting Capacity : 8500 kg /83.4 kN
Max. Hydraulic Outreach : 21.3 m
Slewing Angle : 400°
Max. Lifting Moment : 23.9 mt / 234.0 kNm
Max. Lifting Capacity : 8500 kg /83.4 kN
Max. Hydraulic Outreach : 21.3 m
Slewing Angle : 400°
Max. Lifting Moment : 21.7 mt / 213.0 kNm
Max. Lifting Capacity : 4000 kg / 39.2 kN
Max. Hydraulic Outreach : 15.7 m
Slewing Angle : 400°
Max. Lifting Moment : 28.0 mt / 275.0 kNm
Max. Lifting Capacity : 10000 kg / 98.1 kN
Max. Hydraulic Outreach : 21.3 m
Slewing Angle : 400°
Max. Lifting Moment : 34,5 mt/338,5 kNm
Max. Lifting Capacity : 13200 kg/129,5 kN
Max. Hydraulic Outreach : 16.3 m
Slewing Angle : 400°
Max. Lifting Moment : 52.2 mt/512.0 kNm
Max. Lifting Capacity : 20200 kg/198.2 kN
Max. Hydraulic Outreach : 16.2 m
Slewing Angle : 370°
Max. Lifting Moment : 8.1 mt / 79.6 kNm
Max. Lifting Capacity : 5700 kg / 55.9 kN
Max. Hydraulic Outreach : 11.8 m
Slewing Angle : 400°
Max. Lifting Moment : 9.0 mt / 88.2 kNm
Max. Lifting Capacity : 5700 kg / 55.9 kN
Max. Hydraulic Outreach : 21.3 m
Slewing Angle : 400°
Solid Model
Max. Lifting Moment : 10.3mt/101.4kNm
Max. Lifting Capacity : 5700 kg / 55.9 kN
Max. Hydraulic Outreach : 12 m
Slewing Angle : 400°
Max. Lifting Moment : 11.1mt/108.6kNm
Max. Lifting Capacity : 5700 kg / 55.9 kN
Max. Hydraulic Outreach : 12.0 m
Slewing Angle : 400°
Max. Lifting Moment : 13.2 mt / 129.8 kNm
Max. Lifting Capacity : 6200 kg / 60.8 kN
Max. Hydraulic Outreach : 11.7 m
Slewing Angle : 420°
Max. Lifting Moment : 14.6 mt / 143.3 kNm
Max. Lifting Capacity : 6200 kg / 60.8 kN
Max. Hydraulic Outreach : 11.7 m
Slewing Angle : 420°
Max. Lifting Moment : 20.9 mt / 205.2 kNm
Max. Lifting Capacity : 6200 kg / 60.8 kN
Max. Hydraulic Outreach : 14.9 m
Slewing Angle : 400°
Max. Lifting Moment : 23.1 mt / 226.5 kNm
Max. Lifting Capacity : 6200 kg / 60.8 kN
Max. Hydraulic Outreach : 14.9 m
Slewing Angle : 400°
TEC Model
Max. Lifting Moment : 23.5 mt / 230.5 kNm
Max. Lifting Capacity : 7,100 kg / 69.7 kN
Max. Hydraulic Outreach : 20 m
Slewing Angle : 408°
Max. Lifting Moment : 23.5 mt / 230.,5 kNm
Max. Lifting Capacity : 7,100 kg / 69.7 kN
Max. Hydraulic Outreach : 20 m
Slewing Angle : continuous
Max. Lifting Moment : 35.0 mt / 343.3 kNm
Max. Lifting Capacity : 10,000 kg / 98.1 kN
Max. Hydraulic Outreach : 21.8 m
Slewing Angle : continuous
PALFINGER EQUIPMENT: Rotator, Orange Peel Grapples, Brick Stack Grapples, Clamshell Buckets, Universal Buckets, Workman-Baskets, Pallet Forks, Manipulators, Barrier Lifter, Augers.
